CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah Bộ pin điện áp cao cho xe tải tốc độ thấp
Người liên hệ : Rosa Liu
Số điện thoại : +86 18975107916
WhatsApp : +8618975107916
| Số lượng đặt hàng tối thiểu : | 2 đơn vị | Giá bán : | có thể đàm phán |
|---|---|---|---|
| chi tiết đóng gói : | Vỏ gỗ và hộp carton | Thời gian giao hàng : | 7-15 ngày làm việc |
| Điều khoản thanh toán : | T/T | Khả năng cung cấp : | 10000 đơn vị mỗi tháng |
| Nguồn gốc: | Hunan, Trung Quốc | Hàng hiệu: | Chalong Fly |
|---|---|---|---|
| Chứng nhận: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Số mô hình: | CLFLE218 |
|
Thông tin chi tiết |
|||
| Loại pin:: | pin lifepo4 | Điện áp:: | 48V |
|---|---|---|---|
| Dung tích:: | 200ah | Kích cỡ:: | tùy chỉnh |
| OEM/ODM:: | Đúng | Gói vận chuyển:: | Vỏ xốp & ván ép |
| Tiêu chuẩn chống nước:: | IP67 | Mã HS:: | 8507600090 |
| Đặc trưng:: | chi phí hiệu quả, giao hàng nhanh, cấu trúc ổn định | Ứng dụng:: | xe điện,thuyền điện,du thuyền điện,hàng hải |
Mô tả sản phẩm

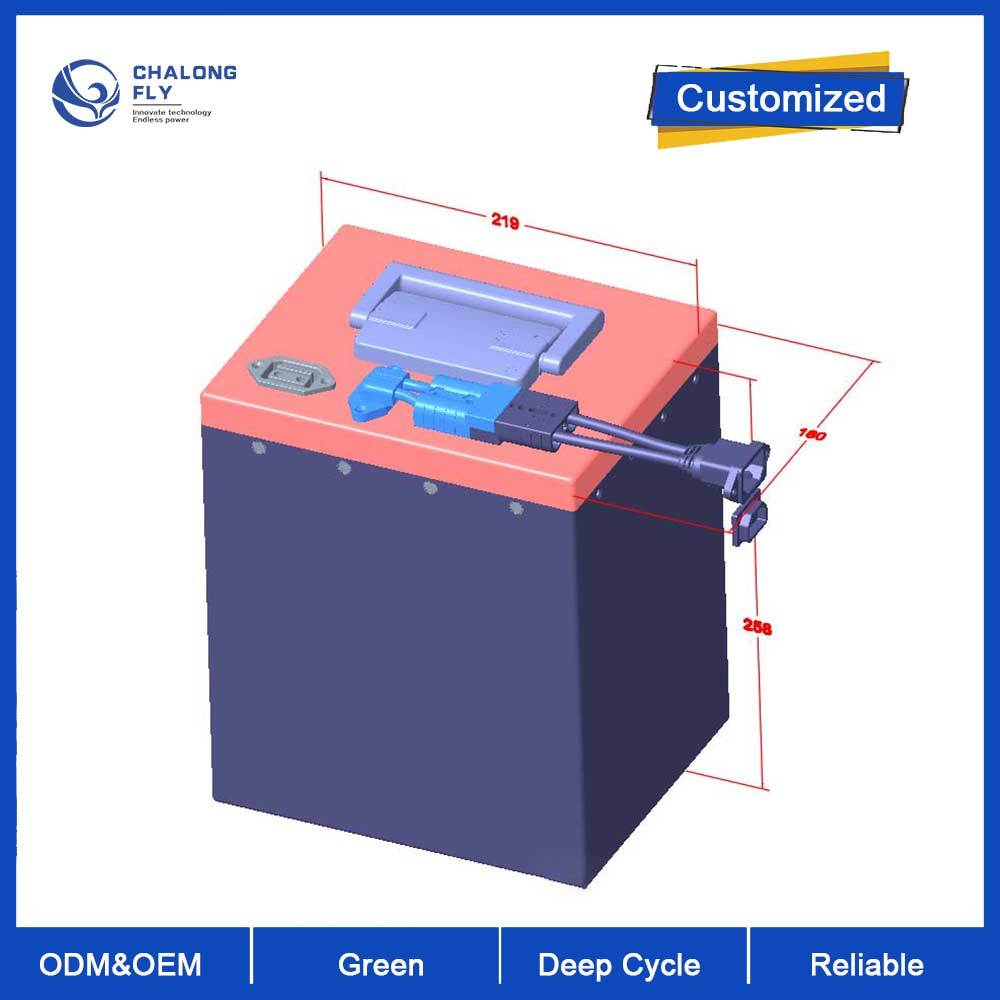

This 72V 45Ah lithium iron phosphate (LiFePO4) battery is specially designed for high-power electric two-wheelers, including electric scooters, electric motorcycles, takeaway delivery vehicles and modified commuter vehicles. It completely solves the pain points of traditional lead-acid batteries such as short battery life, heavy weight, slow charging and short cycle life, providing stable, safe and long-lasting power support for long-distance travel and high-intensity use. With industrial-grade LiFePO4 cells and intelligent BMS protection system, it features ultra-long cycle life, lightweight design, IP67 waterproof/dustproof performance and wide temperature adaptability, making it the best upgrade choice for 72V electric two-wheelers.
| Parameter Item | Specification Details |
|---|---|
| Model Number | LFP-7245-TW |
| Nominal Voltage | 72V |
| Nominal Capacity | 45Ah |
| Total Energy | 3.24kWh |
| Cell Type | LiFePO4 (Lithium Iron Phosphate) |
| Charge Voltage | 84.0V ±0.2V |
| Cut-Off Discharge Voltage | 63.0V ±0.2V |
| Max Continuous Discharge Current | 45A (1C) |
| Peak Discharge Current | 90A (2C, 30s) |
| Standard Charge Current | 10A (0.2C), support 2C fast charge |
| Cycle Life | ≥1500 cycles @80% DoD, ≥2000 cycles @50% DoD |
| Working Temperature | Charge: 0~55℃; Discharge: -20~60℃ |
| Net Weight | ≈17.5kg |
| Product Dimension (L*W*H) | 480*290*175mm (customizable) |
| Protection Grade | IP67 waterproof & dustproof |
| Connector Type | Anderson 50A/XT90 (customizable) |
| Warranty Period | 5 years / 1000 cycles (whichever comes first) |
| Certifications | CE, RoHS, UN38.3, MSDS |
![]()
![]()
A1: The actual range is 120-150km, depending on motor power (1500-2000W), vehicle load, road conditions and driving habits; flat road with light load can reach the upper limit of range.
A2: Standard 10A charger: 6-8 hours full charge; 2C fast charger: 3-4 hours full charge, fast charge mode does not damage the battery.
A3: Yes, it is a direct upgrade replacement for 72V lead-acid batteries, same voltage interface, plug-and-play, no circuit modification required.
A4: We provide 5-year or 1000-cycle warranty (whichever comes first), covering quality defects (non-human damage).
A5: It has IP67 waterproof grade, can be used normally in rainy days, resist daily splashing and light immersion, but do not soak in water for a long time.
A6: LiFePO4 battery has lighter weight (45% lighter), longer cycle life (5-8 times), faster charging, higher safety, zero maintenance, and better overall performance than lead-acid batteries.
A7: Yes, it supports normal discharge at -20℃, with small capacity attenuation, suitable for cold regions; it is recommended to charge in room temperature environment in extreme cold.
